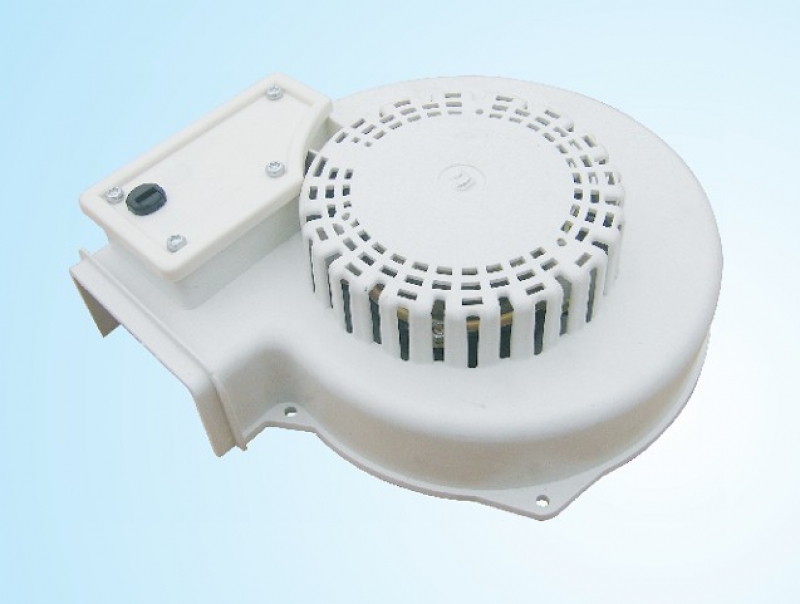

AC 1367 Series Blower

Inquiry This Product

Please type your full name.

Invalid email address.

Invalid Input

Invalid Input

Invalid Input

Captcha Refresh Invalid Input

Invalid Input

  • Size : 206mmx211mmx68mm
  • Airflow : 119~136 m3/hr 70~80 CFM
  • Weight : 850g
  • Noise : 58~60dBA
  • Impeller : PP UL94V-O Reinforced Plastic
  • Frame : PP UL94V-O Reinforced Plastic
  • Lead Wire : SPT-2(W) OR Customize design (Optional)
  • Motor : Capacitor-Run Induction Motor
  • Insulatoin : Class B. Thermally Protected F.
  • Safety : UL, CUL, CSA
  • Operation Temperature : -30℃~+70℃

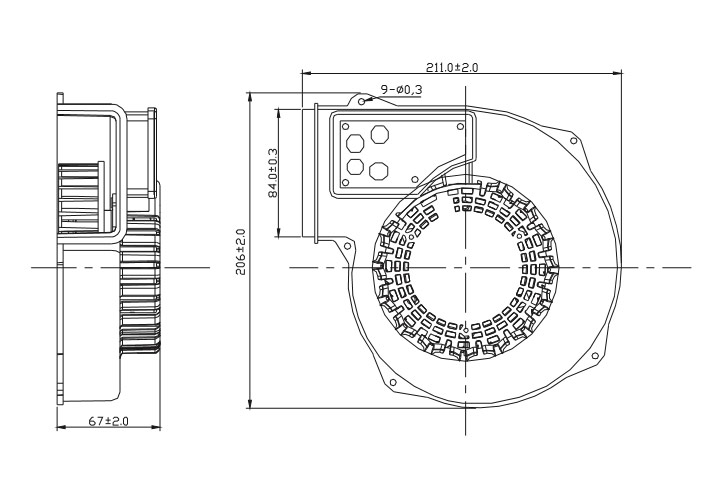

Dimensions Drawing

MODELBearing SystemVoltage (V)Frrq (Hz)Current (A)Power (W)Speed (RPM)Noise (Dba)AirflowStatic Pressure (mmH2O)Weight (Gram)
(M3/hr)(CFM)
SCH1367S6A Sleeve 220~240 50/60 0.35 74 2450 58 119 70 27 850
SCH1367S3A 100~120 50/60 0.90 90 2300 60 136 80 41

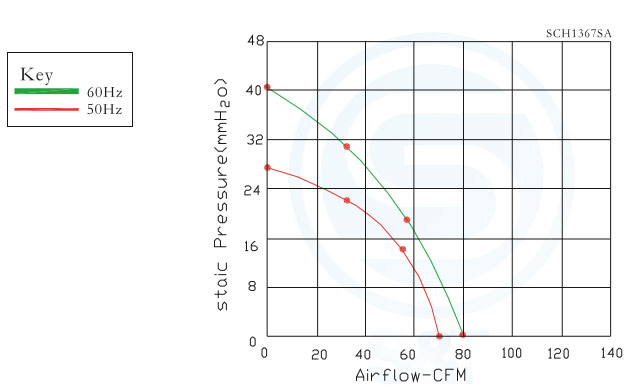

Performance Curves
